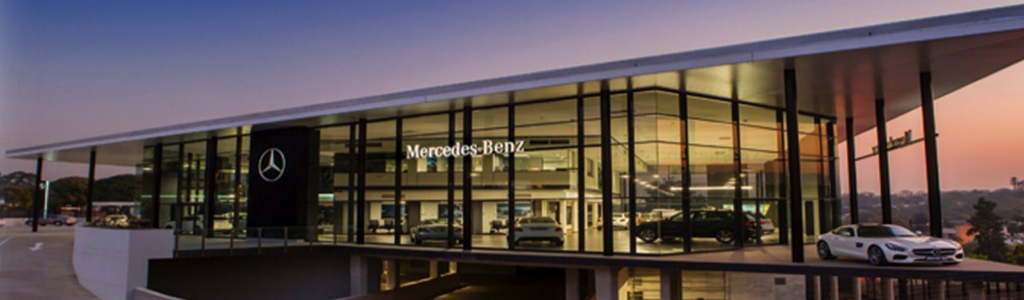

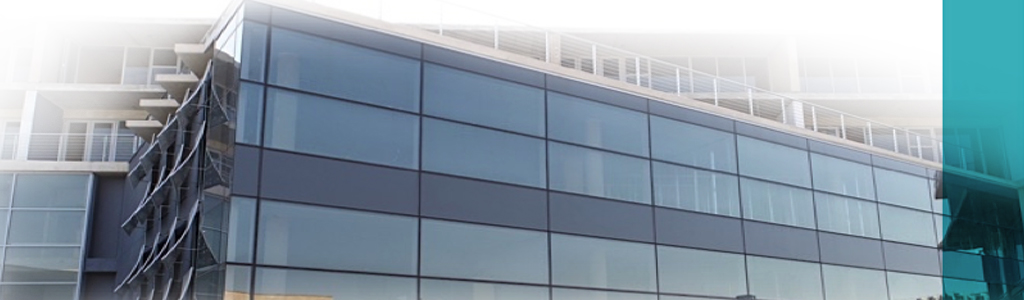

Curtain walling is a wall façade, with virtually unlimited configurations, that allows as much light as possible into a building. While curtain walls are visually very striking, they also offer a wide range of technical benefits too, including:

  • Reducing building sway
  • Inhibiting the spread of fires
  • Enhance a building’s natural light

Aluminium is the perfect choice of frame for a curtain wall for many reasons.

The most important of these are that it:

  • Creates a waterproof barrier
  • Stops the heavy glass panels from falling out
  • Offers excellent thermal insulation
  • Transfers the load back to the building’s main structure
  • Provides fire, smoke and acoustic separation
  • PG 50 – Internal and External sightline of 50mm.
  • FG 50 – Internal and External sightline OF 50/81mm
  • Complies with AMSAA A4 Design standards.
  • Accommodates glazing from 2mm – 30mm.
  • Allows the use of 2 different finishes on a project.
  • The pressure equalization ensures rapid drainage.
  • EPDM Gaskets ensures excellent sealing against water & Air Infiltration.
  • Mullion depths range from 121mm – 205mm – 250mm extension Mullion.
  • Transom depths range from 78 – 183.
  • Transom Inertia range from a…
  • IX of 37cm4 – 395 cm4.
  • IY of 18 cm4 – 51cm4.
  • Accommodates Alsysco sashes UP TO 1800 X 1800 on top hung and 900 x 1800.
  • Secure Multi-point locking systems also available.
